Biosensors
iST Jobst is the global competence and performance leader for biosensor applications.
Major activities are in multi-biosensors, in vivo biosensors, analyzers, sensing- and control-microsystems for their application in medical devices and biotech monitoring. The multiparametric biosensors can be used directly in cell culture media and with body fluids, i.e. whole blood.
Our main analyte offering consists of long term stable continuous readout of glucose, lactate, glutamine and glutamate.
The enzmatic biosensors are available as chip-only, probe-type devices, as well as flow through devices from microfluidic integrations up to industrial scale liters per minute flows.

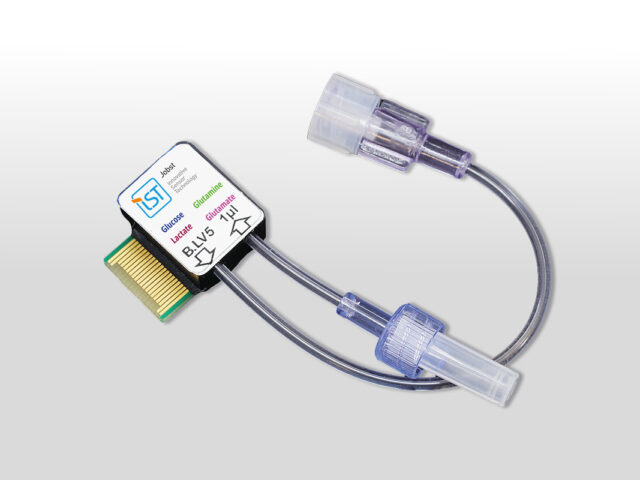

Biosensor B.LV5
Multi-analyte flow through biosensor arrays
- monitoring at extremely low flow rates as low as 5 µl/min up to 10 ml/min
- monitoring of volumes smaller than 1 µl
- Fluidic contact options:
- LUER Lock;
- 0.5 mm iD, 0.3 mm iD, 0.15 mm iD tubing;
- barbed connectors for 3/8, 1/4, 1/2 and 1 inch iD tubes

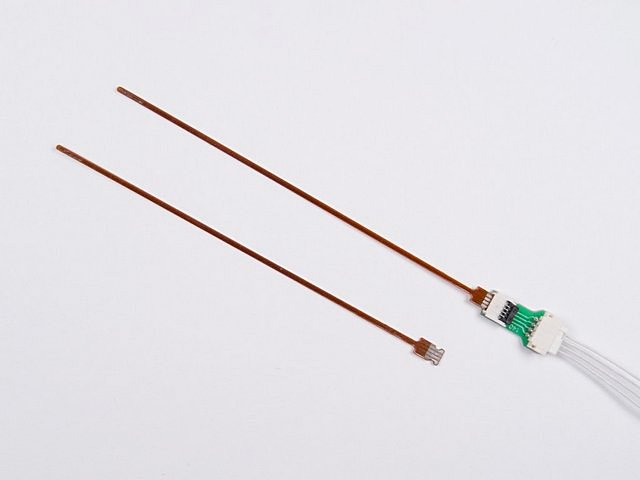

Biosensor B.IV4
Probe-type biosensor arrays
- flexible, biocompatible biosensor for media container and flow stream insertion probes
- optional integrated fluid channel within device
- dimensions (L x W x H in mm): 60 x 0.8 x 0.2

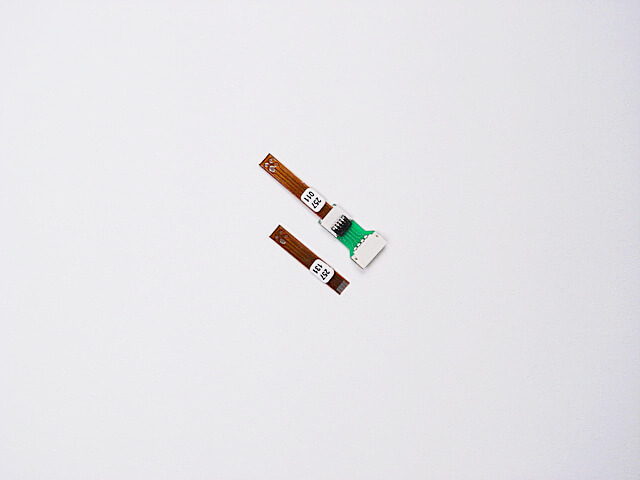

Biosensor DipIn
Miniaturized biosensor arrays
- flexible, biocompatible biosensor for small container probes and cartridge integration
- dimensions (L x W x H in mm): 15 x 2.5 x 0.2
Evaluation products for professionals to be used solely for research and development purposes!
Not for medical and diagnostic use. Not to be used on humans. For more information contact iST Jobst.
