Passive and Active Microfluidics & Accessories
Jost Technologies offers microfluidic components for pumping, mixing and splitting of low volume
Pumps
Key facts of the CPP‑1 pump family:
- Pumping of various liquids and gases
- Small footprint
- Medium only in contact with medical grade silicone tube
- Bidirectional pumping possible
- Evaluation kit available that allows to control up to 4 pumps via plug & play to the USB port of a computer
- Lightweight

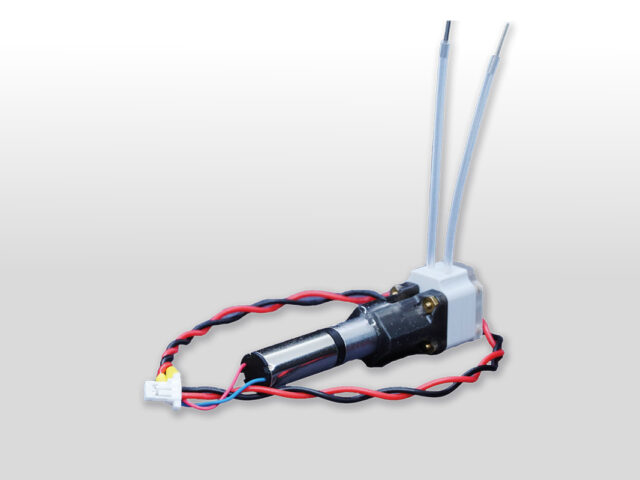

CPP‑1 180-ZM
- For very low pump rates in fluids and gases in combination with long lifetime.
- Most robust pump in the CPP‑1 product group.
- Flow rate: 0.15 μl to 180 μl/min
CPP‑1 1000-ZM
- For high and precise pump rates in fluids and gases in combination with long lifetime.
- Flow rate: 2 μl to 1700 μl/min
Evaluation Kits
The pump evaluation kits are designed to control up to 4 pumps at once with a plug & play approach.
Hardware
You can order evaluation kits that can either control 2 or 4 CPP‑1 pumps at once. They are operated via USB to a computer running Windows 10.

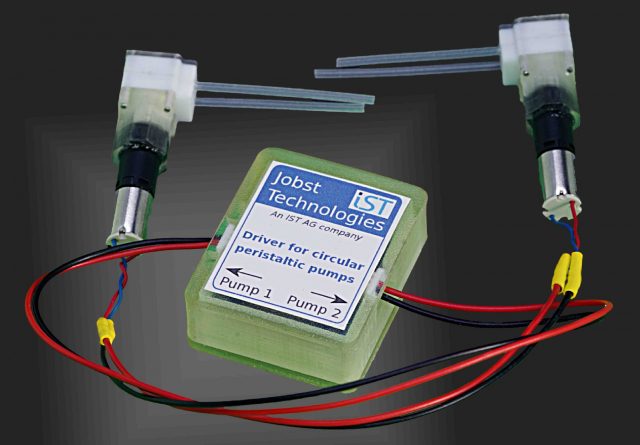

Evaluation kits that can either control 2 or 4 CPP‑1 pump
The evaluation kits come with OpenSource firmware and the frontend software “JT Pump Driver”. You can download them from:
Firmware:
https://github.com/JobstTechnologies/JT-PumpDriver-Firmware/releases
(How to perform a firmware update if necessary is explained in the manual.)
Frontend software “JT Pump Driver” for Windows 10: https://github.com/JobstTechnologies/JT-Pump-Driver/releases
(You don’t need to install it, thus no admin permissions are necessary.)
Microfluidic Accessories
Microfluidic Connectors

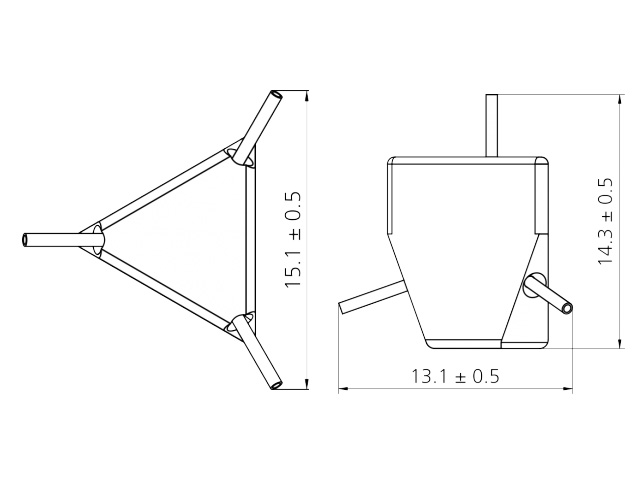

Pyramid connector
4‑way connector for flexible fluidics tubes without a predominant direction — 1 inlet stream can equally be split into 3 outlet streams.
- Weight: 0.61 g
- Size:13.1 × 14.3 × 15.1 ± 0.5 mm
- Tube material: Stainless steel 1.4301
- Tube dimension: 0.45 mm inner / 0.65 mm outer diameter
- Part number: MF.PC1.650.450.SS.14301

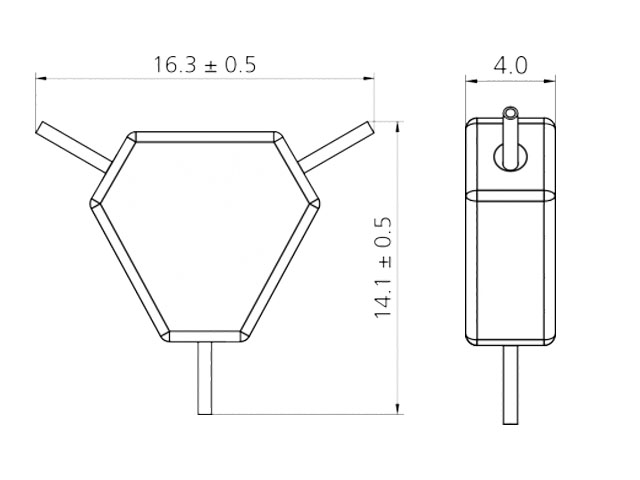

Y‑connector
3‑way connector for flexible fluidics tubes without a predominant direction — 1 inlet stream can equally be split into 2 outlet streams.
- Weight: 0.41 g
- Size: 16.3 ± 0.5 × 14.1 ± 0.5 × 4.0 mm
- Tube material: Stainless steel 1.4301
- Tube dimension: 0.45 mm inner / 0.65 mm outer diameter
- Part number: MF.YC1.650.450.SS.14301

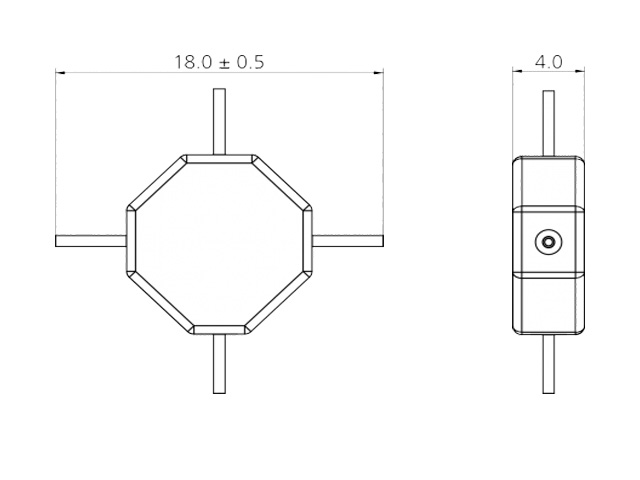

X‑connector
4‑way connector for flexible fluidics tubes with a predominant direction
- Weight: 0.28 gSize:18.0 ± 0.5 × 18.0 ± 0.5 × 4.0 mm
- Tube material: Stainless steel 1.4301
- Tube dimension: 0.45 mm inner / 0.65 mm outer diameter
- Part number: MF.XC1.650.450.SS.14301
Holders

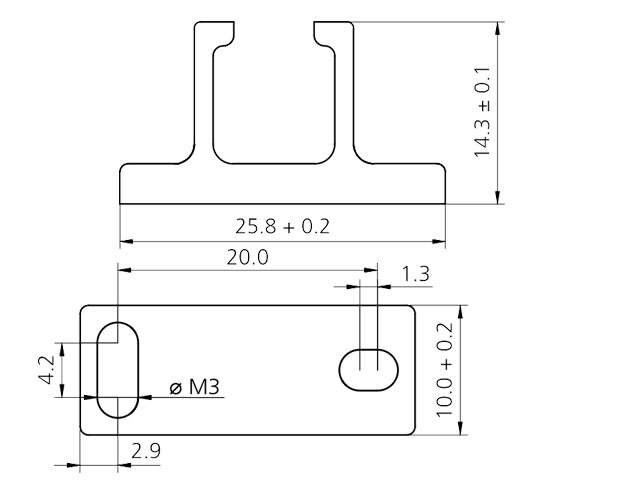

Holder for CPP1 micropumps
- Weight: 1.67 g
- Size: 25.8 + 0.2 × 14.3 ± 0.1 × 10.0 + 0.2 mm
Fixation: 2 holes for ISO M3 screws - Part number: MF.HO1.000.000.NN.00000
Evaluation products for professionals to be used solely for research and development purposes!
Not for medical and diagnostic use. Not to be used on humans. For more information contact iST Jobst.
