Biosensor measuring instrumentation
Our continuous biosensors feature up to six working electrode channels for amperometric readout at currents from pA to nA range.
With our B.SIX transmitter series evaluation units we offer an accomodating option for small size cost efficient readout of all channels. Where the USB option offers plug and play functionality, the OEM option gives direct access via UART serial lines ready for microcontroller integration.
Contact us for more information on data communication protocols, sensor operation and software read-out.

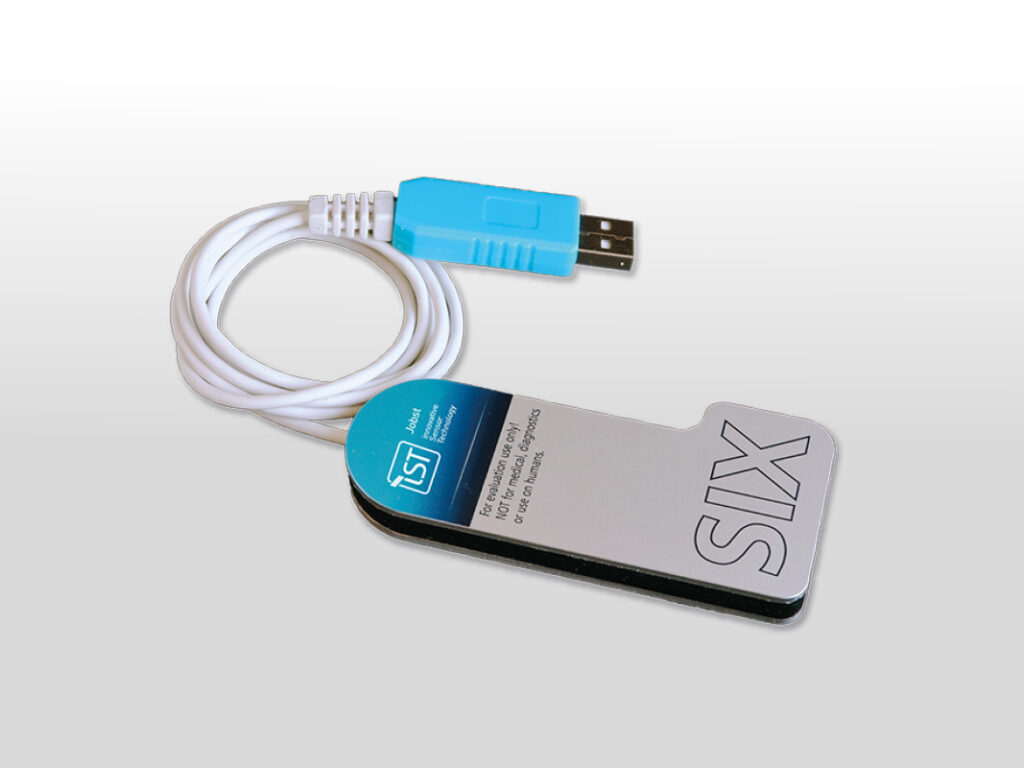

Six Transmitter to operate Jobst biosensors
- Connectivity: to Computer by USB cable
- Digital interface and Power supply: USB 2.0
- Dimensions: 90 x 42 x 10 (L x W x H in mm)
- Weight: 75 gram
- Software: Windows based evaluation software bioMON
- Connectivity to sensors:
- Ruggedized B.LV5 biosensor directly fit (no cable required)
- Strip-type biosensors B.IV4 and DipIn (Strip-type cable assembly required)

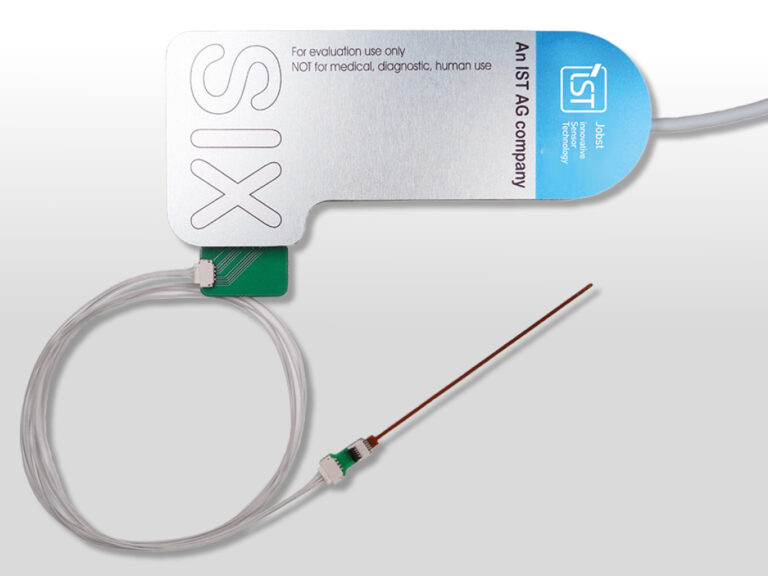

Six Transmitter with strip-type Biosensor B.IV4 connected
- Offering: adapter and cable to connect the B.IV4 and B.DipIn biosensor product line
- Connectivity: available as one-channel as well as three-channel connector

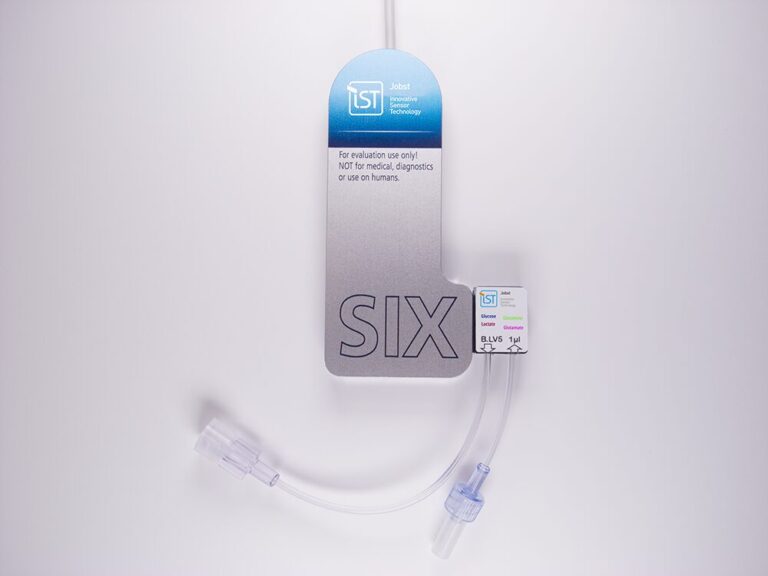

“Six” Transmitter with flow-through Biosensor B.LV5 connected
- Offering: plug-and-play connectivity of the B.LV5 ruggedized two-analyte and four-analyte sensors
- Connectivity: connector and adapter options available for cable-integration as well as all other offered B.LV5 integration option

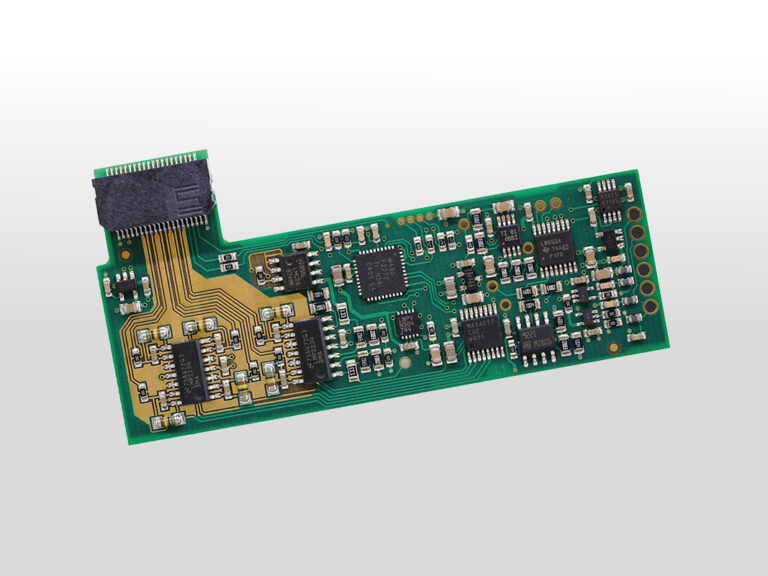

TTL UART connective „Six“ for OEM integration
OEM Version
- Connectivity: to microProcessor
- Digital interface: TTL UART
- Software: Protocol syntax supplied
- Dimensions: 75 x 38 x 7 (L x W x H in mm)
- Weight: 8 gram
- Power supply: +3,3… 5 V / 5 mA
Software
- Easy to use Windows software allowing real time charting of up to 48 channels (optionally converted or fitted).
- Multiple hardware devices in multiple individual windows.
- Matches our USB powered biosensor transmitters
- Timed routines for complex procedures.
- 3rd Party COM-Port driver available for different hardware versions here and here
additional control capabilities:
- control commands from external programs
- (multiple) Syringe pumps for precise delivery of fluids and mixing
Downloads
Datasheet SIX biosensor transmitter
Show description
Product: SIX biosensor transmitter USB and OEM
Intended use: Biosensor transmitter for bioanalytical applications
Transmitter to operate B.LV5 and B.IV4 biosensors.
Evaluation products for professionals to be used solely for research and development purposes!
Not for medical and diagnostic use. Not to be used on humans. For more information contact iST Jobst.
